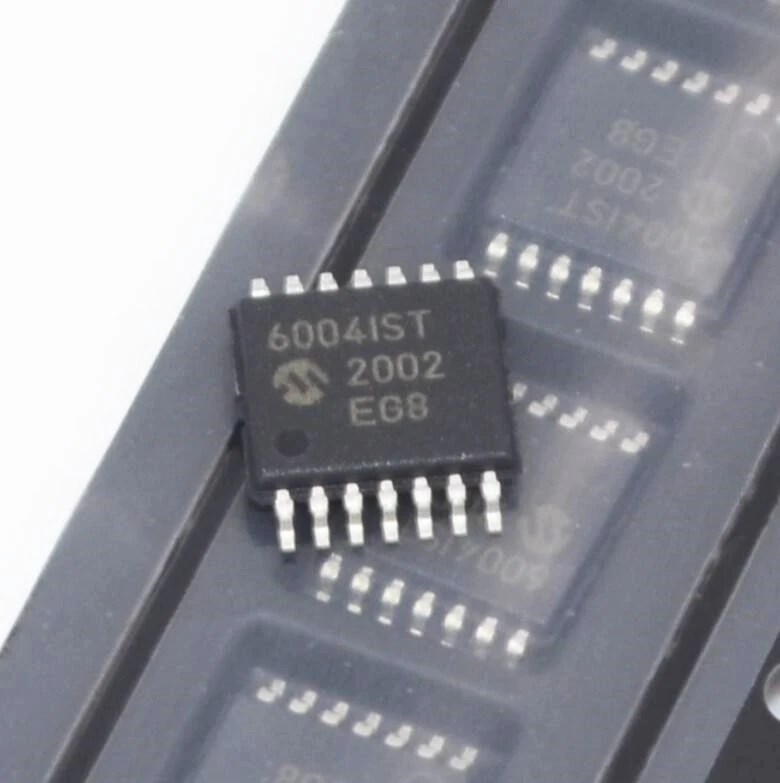

MCP6004-I

Функции

●5-Lead SOT-23and 5-Lead SC-70 Packages

●1 MHz Gain Bandwidth Product

●Supply Voltage: 1.8V to 6.0V

●Supply Current: IQ = 100 µA

●Temperature Range:

- Промышленный: от -40 до плюс 85 градусов

- Расширенный: от -40 до плюс 125 градусов

●90 degree Phase Margin

●Single, Dual and Quad Packages

●Rail-to-Rail Input/Output

Приложения

●Automotive

●Portable Equipment

●Battery-Powered Systems

●Photodiode Amplifier

●Notebooks and PDAs

Описание

The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product and 90 degree phase margin . It also maintains a 45 degree phase margin with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 µA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD plus 300 mV to VSS – 300 mV. This family of op amps is designed with Microchip's advanced CMOS process.

Семейство MCP6001/2/4 доступно для промышленного и расширенного температурного диапазонов с диапазоном питания от 1,8 В до 6,0 В.
